How to Use Flexible Busbar and Rigid Busbar in Combination

In modern electrical systems, flexible and rigid busbars are both important. Their distinct features suit different applications, and combining them can enhance performance and meet complex electrical needs.

Characteristics of Flexible and Rigid Busbars
Flexible Busbar Features：Flexible busbars are made from copper or aluminum foil with flexible insulation, so they're bendable. This makes them easy to install in tight or complex - shaped areas. They can also resist thermal expansion and contraction well, which is crucial in environments with large temperature changes. For example, in aerospace, where space is limited and components face extreme temperatures during flight, flexible busbars can keep electrical connections stable.

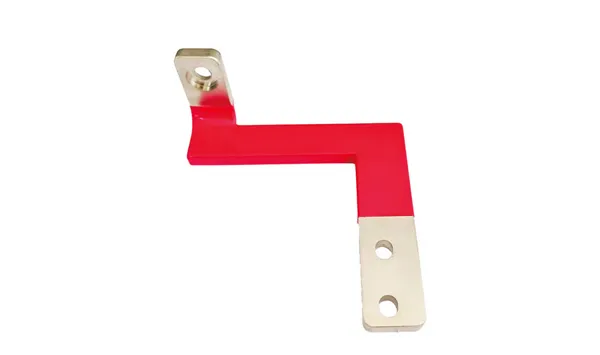

Rigid Busbar Features：Rigid busbars are usually made of solid copper or aluminum bars. They have high mechanical strength and stability, and can handle high - current loads with low electrical resistance. Thus, they're ideal for large - scale power transmission in power plants and big industrial facilities. Their sturdy structure ensures long - term reliability in static setups.

Application Scenarios for Combining Them
In Data Centers：Data centers have a complex layout with many electrical components. Rigid busbars can be used for the main power distribution network as they can handle the high - current demands of servers. Flexible busbars can connect individual servers to the main power bus. Their flexibility allows for easy routing around server racks, saving installation time and effort. This combination ensures efficient power distribution in the data center's complex space.
In Power Generation and Transmission Substations：In power generation plants, rigid busbars are used for high - voltage, high - current connections in main power generation equipment and initial substation power distribution. Flexible busbars can be used for connections between sub - components that might move slightly due to thermal expansion or mechanical vibrations. For example, the connection between a generator and a step - up transformer may use a flexible busbar to account for minor movements, while the main transmission lines in the substation use rigid busbars for their high - load - carrying capacity.

Considerations for Combining Them
Electrical Parameter Compatibility：When combining the two types of busbars, ensure compatibility in voltage rating, current - carrying capacity, and impedance. Mismatched parameters can cause overheating, power losses, and electrical failures. For instance, if a low - current - capacity flexible busbar is connected to a high - current rigid busbar, the flexible one may overheat and malfunction.
Connection Methods：Proper connection methods are key. Use high - quality connectors to connect flexible and rigid busbars for a secure, low - resistance connection. Pay attention to the connection's mechanical strength as the flexible busbar may move or vibrate, loosening the connection over time. Torque - controlled bolts and anti - vibration washers can help maintain a stable connection.
Thermal Management：Both busbars can generate heat during operation, so thermal management is important. Design the combination for effective heat dissipation, which may involve using heat - sinks, cooling fans, or proper ventilation. Consider the different heat - dissipation characteristics of flexible and rigid busbars to keep the system within a safe temperature range.

In summary, the combination of flexible and rigid busbars is a great solution in many electrical applications. By understanding their features, finding suitable scenarios, and carefully considering compatibility, connection methods, and thermal management, engineers can create efficient and reliable electrical systems for modern industries.
