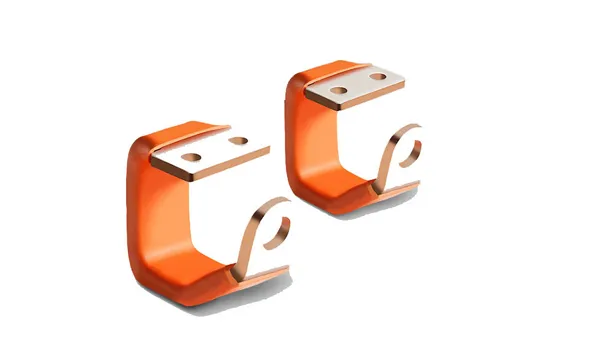

How to Improve the Heat Dissipation Performance of Flexible Busbar

In electrical systems, the heat dissipation performance of flexible busbars is of great significance. Efficient heat dissipation can ensure the stable operation of the system, extend the service life of the busbar, and enhance the overall safety and reliability of the electrical system. Here are several effective methods to enhance the heat dissipation performance of flexible busbars.

1. Optimize Material Selection
1.1 Choose High - Thermal - Conductivity Conductors
The choice of conductor material has a significant impact on heat dissipation. Copper and aluminum are commonly used materials for flexible busbars, but their thermal conductivities vary. Copper has a relatively high thermal conductivity, which can effectively transfer the heat generated during current flow. In high - power applications with high heat - dissipation requirements, using copper - based flexible busbars made of high - purity copper can increase the heat transfer rate from the interior of the busbar to the surface, facilitating heat dissipation to the surrounding environment. For example, in large - scale power distribution stations, high - purity copper flexible busbars can quickly dissipate the heat generated by high - current transmission, reducing the risk of overheating.
1.2 Employ Heat - Conductive Insulation Materials
In addition to the conductor, the insulation material also affects heat dissipation. Instead of traditional insulation materials with low thermal conductivity, heat - conductive insulation materials can be selected. These materials not only provide electrical insulation but also assist in heat transfer. For instance, some advanced silicone - based insulation materials with added heat - conductive fillers can improve the overall heat - dissipation efficiency of the flexible busbar. They can conduct the heat from the conductor to the outer surface, where it can be dissipated more easily.

2. Optimize Structural Design
2.1 Increase the Surface Area
A larger surface area enables more efficient heat dissipation. Flexible busbars can be designed with structures that increase the surface - area - to - volume ratio. One way is to use a multi - layer or corrugated design. A multi - layer flexible busbar can expose more surface area to the air, promoting heat transfer through convection. In a corrugated - shaped flexible busbar, the undulating surface provides additional space for heat dissipation. For example, in high - power LED lighting systems, a flexible busbar with a corrugated structure can effectively dissipate the heat generated by the LEDs, ensuring their stable operation and long - term performance.
2.2 Integrate Heat - Dissipating Fins
Heat - dissipating fins can be integrated into the design of flexible busbars. These fins are usually made of materials with high thermal conductivity, such as aluminum. By attaching fins to the surface of the flexible busbar, the heat - dissipation area is further expanded. The fins can quickly transfer the heat from the busbar to the surrounding air. In some industrial electrical equipment, flexible busbars with heat - dissipating fins can handle the high - heat - load conditions during operation, preventing overheating and ensuring the normal operation of the equipment.

3. Implement Auxiliary Heat - Dissipation Measures
3.1 Use Cooling Fans
Installing cooling fans near the flexible busbar can increase the air - flow rate around it. Forced air circulation can accelerate the heat - dissipation process through convection. In data centers, where a large number of electrical components generate heat, cooling fans can be arranged to direct air towards the flexible busbars. This continuous flow of fresh air can carry away the heat from the busbars, maintaining a relatively low operating temperature.
3.2 Apply Heat - Sink Compounds
Heat - sink compounds can be applied between the flexible busbar and any adjacent heat - dissipating components, such as heat sinks. These compounds have high thermal conductivity and can fill the microscopic gaps between the surfaces, improving the thermal contact. By using heat - sink compounds, the heat transfer efficiency from the busbar to the heat - dissipating component is increased. In high - performance computer systems, heat - sink compounds are often used to enhance the heat dissipation of flexible busbars connecting different components, ensuring the stable operation of the system under high - load conditions.

In conclusion, improving the heat - dissipation performance of flexible busbars can be achieved through a combination of optimizing material selection, structural design, and implementing auxiliary heat - dissipation measures. These methods can effectively address the heat - related issues in flexible busbars, ensuring the reliable operation of electrical systems in various applications.
